Objectives

Students will be able to:

  • use basic functions to perform calculations
  • understand the concept of copy down
  • possibly create a simple bar chart.

String functions

A B C D E F
1 id Pet Name Age (months) Owner Date Sickness
2 cat-212 Harold 8 Jessie Lee 12 Jan Flu
3 dog-412 Kolt 4 Flo Werner 13 Jan Vomiting
4 dog-200 Mercy 14 Pat Xu 13 Jan Eye rash
5 dog-132 Bushman 3 Jerzy Dudek 14 Jan Eye infection
6 cat-212 Harold 8 Jessie Lee 14 Jan Flu

A dog-and-cat vet uses a spreadsheet to log visits by sick animals.

She just enters the id of the animal and a lookup table fills in the Name, Age and Owner.

The problem is she wants the software to automatically count the number of cats and the number of dogs. With a few rows of data, it's easy to count them.

However, what if there were many rows of data? It would be time-consuming to count and the risk of human error increases. If only we could count when the id starts with cat or dog.

Common spreadsheet applications have a wide set of functions to process text data. Text data in computer applications are often referred to as Strings. So, we need to figure out how to use String functions in spreadsheets.

Let's create a new column between Column A and Column B:

A B C D E F F
1 id Pet Type Pet Name Age (months) Owner Date Sickness
2 cat-212 Harold 8 Jessie Lee 12 Jan Flu
3 dog-412 Kolt 4 Flo Werner 13 Jan Vomiting
4 dog-200 Mercy 14 Pat Xu 13 Jan Eye rash
5 dog-132 Bushman 3 Jerzy Dudek 14 Jan Eye infection
6 cat-212 Harold 8 Jessie Lee 14 Jan Flu

In cell B2, let's use a String function. We are going to slice the first 3 characters from the left side of the string in cell A2

=left(A2, 3)

We can now copy down the formula into the other cells in column B. Somewhere else in the spreadsheet we can use countif to create summary data and charts.

   Task

If you are using Google Sheets, use this sheet.

If you require a csv file to get started, download this one and this one.

Follow these instructions to develop the spreadsheet model:

Open the data sheets. One is a live data sheet and the other contains staff lookup information.
Use a lookup function to automatically enter the First Name and Last Name of every employee listed in the overtime sheet. Copy Down the formula for the remaining rows of data. Make sure you know when to use the $ symbol to fix any cell references.
In cell B2, extract the first 3 characters of related Staff code by using the string function left(String, number of characters). Copy down your result for the other rows in column B.
Create an appropriate function to calculate the Total Payment. This is the Overtime hours worked multiplied by the overtime rate of $20. Note: this rate can change and the entire spreadsheet will update.
Complete the Summary Data under the live data set. Make sure you use absolute references where necessary and copy down your formula appropriately.
Insert a new row at the top of the live data set. Merge the cells spanning columns A:I and enter a title Live Data!, centered in the merged cell, font-size 36.
Format any currency data to be Japanese Yen to zero decimal places.

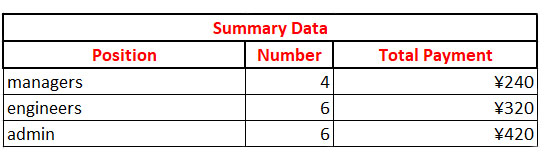

Reorganise the summary data section to look like this:

Make sure all data in your spreadsheet model is visible.

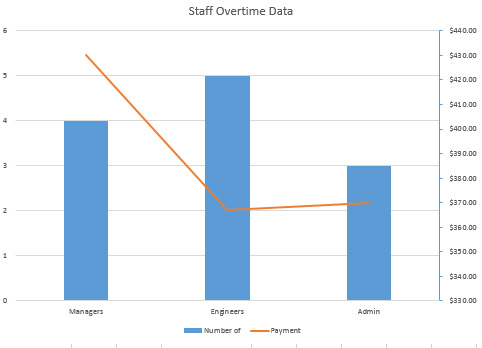

Reproduce this chart. Note: can you figure out how to format the axes, the primary and secondary?

Submit your final spreadsheet file as instructed. BEWARE of saving your work in a CSV file - all of your formatting, functions and chart will be lost!!

Food For Thought

Common spreadsheet software has functions to help us grab slices of a string. As we will discover more, this is extremely handy!
